Excalibur Coating

Wherever extreme requirements for wear resistance are present EXCALIBUR® will exceed common fluoropolymer coatings by far. This is achieved by a unique coating application achieving outstanding non-stick and release properties, combined with a very high resistance against abrasive wear.


EXCALIBUR® - the toughest, longest-lasting, most durable nonstick coating system - offers improved solutions within a wide range of industrial requirements.

In the food industry it leads to longer lifetime for cutting knifes, improved clean-ability for rollers in the printing industry or better release of glue in automotive assembly processes while the packaging industry benefits from higher speed in plastic welding processes.



Functions:

Industries:

  • Fittings industry
  • Automotive industry
  • Electrical engineering
  • Energy sector
  • Maintenance / Repair
  • Plastics processing industry
  • Laboratory technology
  • Coatings technology
  • Food industry
  • Aviation industry
  • Machinery and plant engineering
  • Medical technology (Life Science)
  • Measurement and level control technology
  • Furniture industry
  • Off-Shore
  • Paper and printing industry
  • Pharmaceutical industry
  • Transport sector
  • Watch industry / Luxury goods
  • Packaging industry



Talk to us about your requirements.
We will find the ideal solution for you.

Tel. +49 (0) 7121 98 8 56-0

The patented alloy in the arc welding process.

Functionality of an Excalibur coating Figure 1
Functionality of an Excalibur coating Figure 1

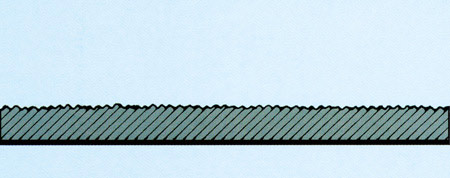

  1. First, the surface of the pan’s substrate is blasted with an abrasive to roughen it, so that other elements in the Excalibur system adhere to it better.
Functionality of an Excalibur coating Figure 2
Functionality of an Excalibur coating Figure 2

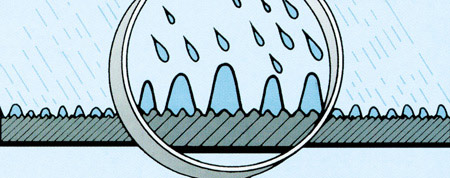

  1. Then, the most important part: White-hot particles of a special stainless steel are sprayed onto the roughened surface.



Functionality of an Excalibur coating Figure 3
Functionality of an Excalibur coating Figure 3
  1. The particles cool and harden, welded to the surface, forming a series of “peaks” and “valleys” that provide a permanent base for the nonstick coatings.



Functionality of an Excalibur coating Figure 4
Functionality of an Excalibur coating Figure 4

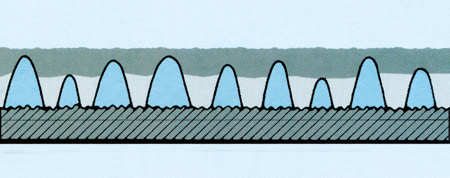

  1. Several coats of tough fluoropolymers fill the “valleys” and cover the “peaks”, locked permanently into place by the stainless-steel "peeks".




Dieses Beschichtungsverfahren finden Sie bei uns bei folgenden Unternehmen:
„de“  ADELHELM LubriCoat GmbH
„ch“  EPOSINT AG Technische Kunststoffbeschichtungen
„us“  ADELHELM LubriCoat North America LLC

id 10712

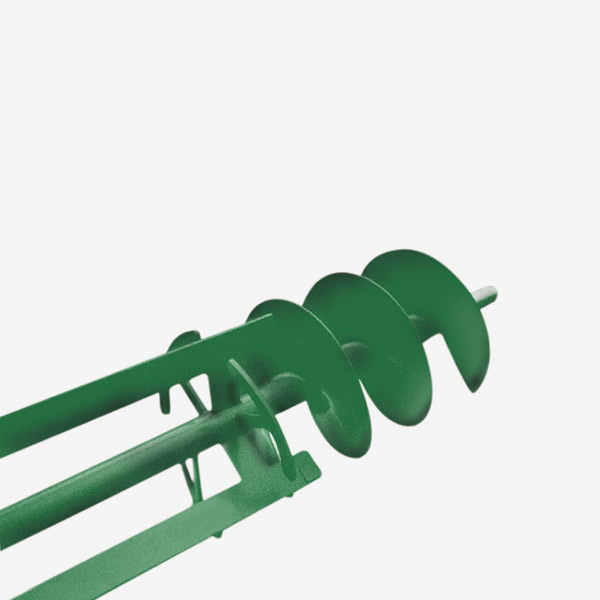

Screw conveyor with Excalibur coating / FEP coating for dough conveying in the food industry
