Chemical protection

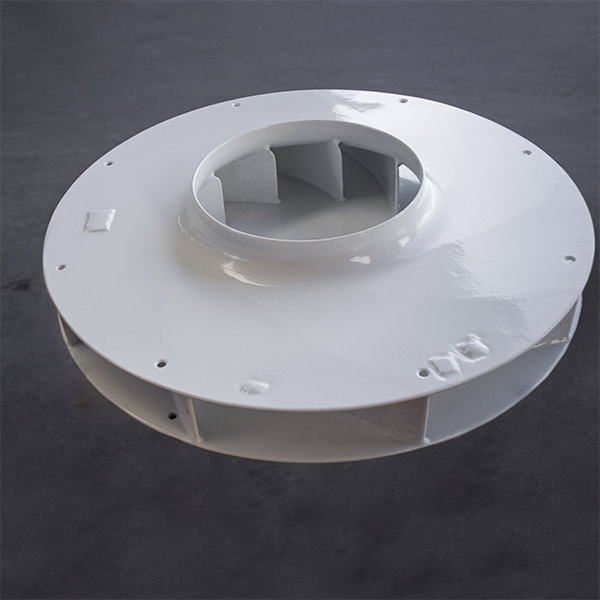

Special coatings protect tanks, stirrers or pipes reliably from attack and destruction by chemicals. Fluoroplastics are particularly suitable as chemical protection, since they are chemically and thermally highly resistant. We achieve the necessary coat thicknesses of up to two millimeters thanks to the thermoplastic properties of fluoropolymers such as E-CTFE (Halar®), ETFE, FEP and PFA. Your advantage: the pore-free surfaces combine good non-stick properties and chemical resistance with good barrier and permeation properties. They protect against solvents, acids, alkalis, oxidizing and reducing agents.

For use at lower temperatures and less aggressive chemicals we also recommend non-fluorinated materials such as PA, PPS, PP and EVAL.

Economical with added value

It is also possible without expensive special alloy: Materials such as aluminum, steel, stainless steel or other alloys together with coating are often a safe and economical alternative. The right coating offers more than pure chemical protection. You can choose from a number of additional functions, for example non-stick, electrically insulating, electrically conductive or wear-resistant. Depending on the component requirement, the coating can be printed or mechanically reworked in order to minimize tolerances in the dimension or the roughness. For the pharmaceutical and food industry, we offer products according to FDA 177.1680 (Title 21).

Methods:
- Manual Coating
- Partially and fully-automated coatings
- Dip coating
- Clean room coating

Industries:
- Chemical industry
- Semiconductor industry
- Maintenance / Repair
- Laboratory technology
- Coatings technology
- Measurement and level control technology
- Off-Shore
- Pharmaceutical industry



Describe us your project and we will find
the perfect coating solution for you.

Tel. +49 7121 98 8 56-0
